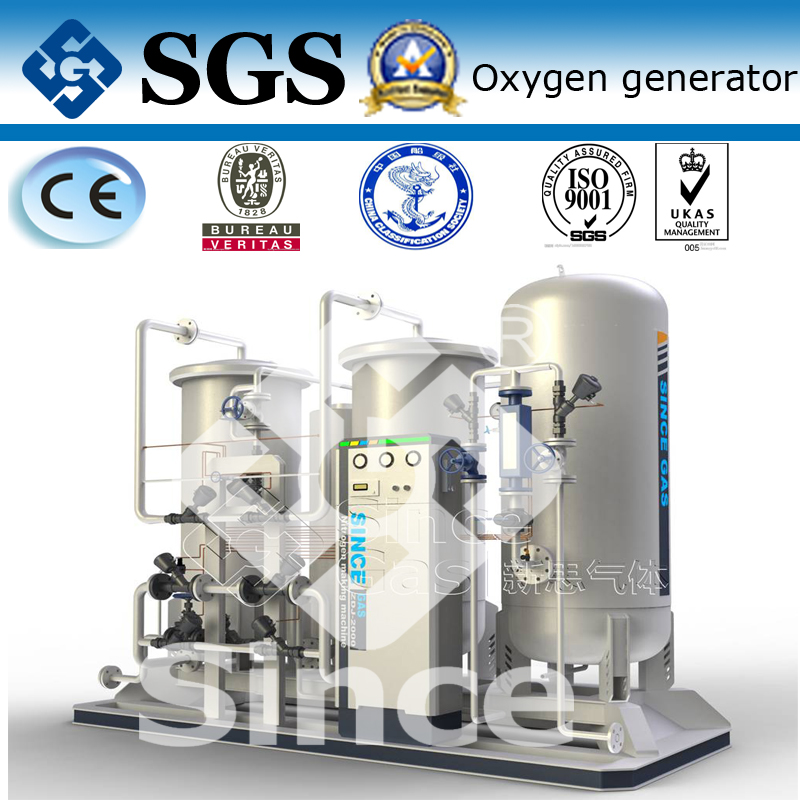

Safe Concentrator Oxygen Generator / Oxygen Generating Systems

Technology PSA oxygen generator

The PSA oxygen generator system uses molecular sieve technology to separate oxygen from the air, using dry and clean air as raw material, using zeolite molecular sieve as adsorbent, and using zeolite molecular sieve to increase the adsorption capacity of nitrogen when pressurized at room

whole set of equipment can be started and stopped at any time, with short start-up time, strong reliability, convenient operation, complete monitoring equipment, almost unmanned operation, just press the button to start and close, and the start-up takes 5 minutes to produce qualified oxygen.

The equipment is easy to check and repair, with few wearing parts, analyzer online detection, high precision, and maintenance-free.

The oxygen purity is easy to adjust. The oxygen purity is only affected by the amount of oxygen discharged. The purity of the oxygen generators can be adjusted between 92% and 94%.

Adopt advanced PLC control or data acquisition monitoring system, and the reserved interface can be remotely monitored with computers.

Scientific structure design and special gas diffusion devices avoid the high-speed impact of gas flow and the phenomenon of molecular sieve powdering.

The use of an internal balance automatic compression device and unique molecular sieve filling technology improves the reliability of the long-term operation of the whole machine.

Automatic interlocking oxygen emptying device to ensure product oxygen quality.

Technical Specifications:

Capacity: 2~150 Nm3/h

Purity: 92±2%

Initial Pressure: 0.05~0.4 Mpa

Dew point: -65℃

Product Features

1, Full set of equipment can run in time of request or have a sudden stop. Short starting time with high

reliability.
2, Easy maintenance, less spare parts
3, Very simple operation, well-equipped monitors help to good running in state of neglect.
4, Advanced PLC control and data acquisition system, a data interface is kept for RMON
5, Scientific designation in structures, special gas diffusion unit, avoiding the high-speed impact by air flow

and CMS being broken
6, Using the automatic internal balancing & clamping device, the unique sub-filling molecular sieve

technology help to raise reliability in long term.
7, oxygen emptying and interlock device ensure the quality level of oxygen.
8, Less occupation in land, easy installation, poor requirement in workshop, no request in foundation.

Application :

1. After the oxygen generator, the oxygen purification system is equipped to guarantee the quality

of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen

outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity

and purity within 30 minutes.

3. Single line and double lines types are available for option. Users are suggested to choose the single

line type when they only require a stable flow capacity; choose double lines when demand is unstable

and sometimes meet extra peak values.
