High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate

    Buy cheap High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate from wholesalers

    Buy cheap High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate from wholesalers
    • Buy cheap High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate from wholesalers

    High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate

    Ask Lasest Price
    Brand Name : Since Gas
    Model Number : ANH
    Certification : CE, GB,BV
    Price : according to actual project, generally 20-30% cost savings over conventional materials
    Supply Ability : 200000tons/year
    Delivery Time : 60days after payment
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    • Product Details
    • Company Profile

    High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate

    High Quality and safety Ammonia Cracking Hydrogen Production CE BV Certificate


    Condition:New

    Type:Resistance Furnace

    Usage:Heat Treatment Furnace

    Dimension(L*W*H):Various

    Weight:3-20ton

    Warranty:12 months

    After-sales: Service Provided:Engineers available to service machinery overseas

    Quality:superior

    Design:novel

    Price:competitive

    Rated heating power of purifier (kw):2~10

    Rated ammonia consumption (kg/h):2~16

    Catalyzer:Nickel catalyst

    Raw material:Liquid Ammonia


    Introduction:

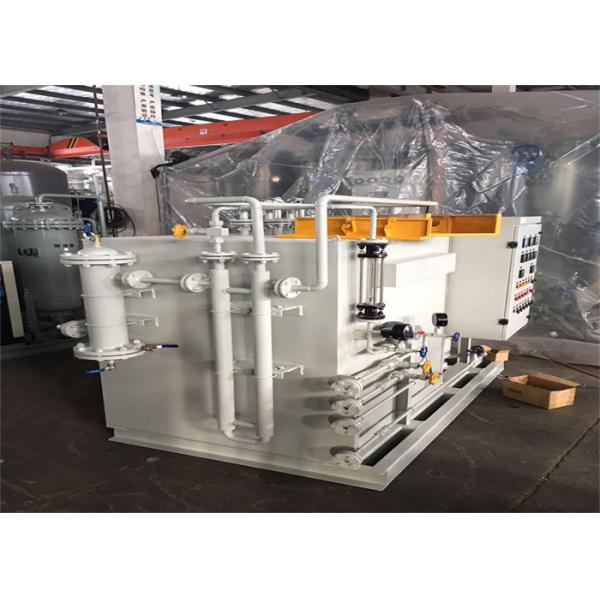

    This series of ammonia decomposition generator is composed by decomposition machine, purifier

    and electric control system. This machine decomposes ammonia into a kind of mixed gas which include 75% hydrogen and 25% nitrogen. The mixed gas generated is mainly used as protection atmosphere in powder metallurgy reduction, sintering, metal heat treatment, electronics, chemistry industry and ceramics. Because of low lost of gas generating, this series of ammonia decomposition generator is specially suitable to be used as accessory equipment of industries mentioned above.

    Product feature:
    Compact design, convenient installation, the core part of cracking system is made of INCO ALLOYS,which is

    the material of corrosion-resistant, Alka-resistant and Acid-resistant, service life is more than 10 years.
    Heat preservation of furnace is full fire structure, with the advantage of rapid temperature rise.
    Heat element is made of full alloy, heating type is plug fuse, it's no need to stop the gas when replace

    the heat elements.Alarm automatically when pressure has too higher or too lower.


    Above is standard fittings, 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
    1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
    2. Dew point detector can be added.
    3. Gas content testing system can be added.

    4. Characteristics

    (1) Small investment

    (2) Reliable performance and long service life

    (3) Heating element

    (4) Thermal insulation material

    (5) Electrical control

    (6) Depressurization system

    (7) Purification system

    (8) Simple installation

    (9) Easy operation and maintenance

    (10) High safety


    Advantage:
    Out pressure is adaptable between 0.05Mpa to 0.5Mpa
    High security: Special furnace material, gas input and output system is special structure, which Max the

    security.


    About us:

    1. Easy Fashion Industry

    2. Specializing in industrial furnaces and equipment

    3. Customizing furnaces according to customers' requirements

    4. Advanced powder and metallurgy manufacturing and melting technology

    5. Passed the ISO9001:2008 and international certificate like CE,CB,GS,etc.

    6.Export to more than 15 countries in Europe,the Middle East,Southeast Asia,America,etc.
