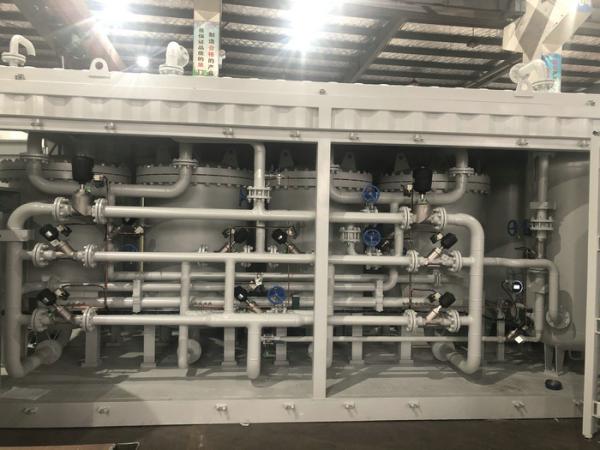

N2 Membrane Type Nitrogen Generator / Air Nitrogen Production Plant

Membrane Type Nitrogen Generator Working Principle

Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen from the air

in the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular sieve, while nitrogen is

collected in a short time, to achieve separation of oxygen and nitrogen.

The adsorption capacity of carbon molecular sieve is significantly different with different oxygen

pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make carbon molecular

sieve regeneration, then can be used repeatedly.

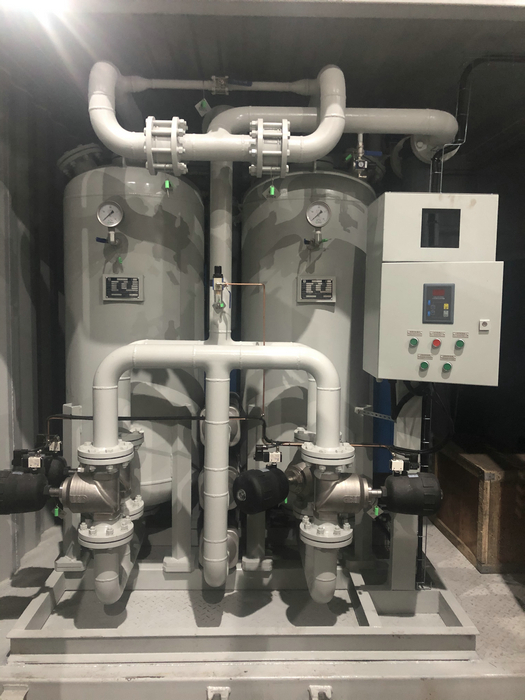

Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling.

They switch with each other, thus continuous output of high-quality nitrogen.

Nitrogen separation

At the heart of the Nitrogen Membrane separation technology are polymeric membrane materials that

allow for the rapid passage of one gas while minimizing the passage of another when applying pressure

gradient across the membrane. Membrane materials are formed into hollow fibers to provide high

surface area for high bolometric gas processing rates.

Selective Permeability

Nitrogen membranes separate gases by the principle of selective permeation across the membranes

wall.

For nitrogen polymeric membranes, the rate of permeation of each gas is determined by its solubility

in the nitrogen membrane material, and the rate of diffusion through the molecular free volume in the

nitrogen membrane wall. Gases that exhibit high solubility in the nitrogen membranes, and gases that

are small in molecular size, permeate faster than larger, less soluble gases.

Fast Gases and Slow Gases

"Fast" gases permeate through the nitrogen membrane wall more readily than "slow" gases, thus

separating the original gas mixture into two streams. The purity of the desired streams can be adjusted

by changing the operating conditions.

The ability of a nitrogen membranes to separate two gases is determined by their "selectivity", the ratio

of permeabilities of the two gases. The higher the selectivity, the more efficient the separation and less

energy is needed to run the system.

Membrane Type Nitrogen Generator Specifications:

After Sales Service Commitment

Free warranty for the equipments during the promised period

1. The nitrogen generator,1 year warranty, maintenance responding time is less than eight hours.
2. Ancillary equipment ,1 year warranty, maintance responding time is less than 8 hours.
3. Lifelong maintance service in a timely manner, the responding time is less than 8 hours.

4.Provide 24-hour hotline service.
5.Return visit every six months (callback or on the spot).

6. General failure:within 2 hours of repair
7. Serious failure:within 12 hours of repair
8. Supply accessories in a timely manner, the delivery time is generally 1-7 days.

9.Free repair at the expiry time of warranty

We are dedicated in the research, development, design, production, manufacturing, sale and service of all kinds of industrial gas equipment, and provide professional consultation on industrial gas systems and related products. Our main products include PSA nitrogen generators, PSA oxygen generators, PSA hydrogen generators, ammonia cracking plant, nitrogen purification plant, methanol decomposition plant etc.

We have obtained dozens of National Invention patents through over 10 years and international certificates such as: ISO9001 international certification, TS certification, SGS testing and certification, CE certification, the United States ASME certification, China Classification Society CCS certification, BV certification, American Bureau of Shipping ABS certification, British Classification Society LR certification, German Classification Society GL certification.

We have provide quality equipment and services for customers from over 30 different industries, such as China Petro, China National Petroleum, CNOOC from petrochemical industry; Sony, Panasonic, Asus, Foxconn from electronics industry; Minute Maid, Jinllongyu, Dio Coffee from food industry; Shanghai Hyundai Pharmaceutical, Jilin Aodong pharmaceutical from pharmaceutical industry; Jiangxi Copper Corporation, Gaoxinzhang Copper from copper processing industry. We also maintain long-term cooperation with the esteemed research institutions, such as Tsinghua University, Henan University, Sichuan University, Tianjin University, 718 Research Institute, etc.. The firefighting system for Beijing Olympic Games in 2008 are equipped with our nitrogen system. Both phase 1 and 2. Nanjing Mint and Shanghai Mint have both purchased and used our Nitrogen system units for their coin production, and the result has been excellent.

Furthermore, we have exported our gas plants to over 40 different countries, with proven result on its quality, stability and safety. We hold the core culture concept of "people-oriented, realistic and innovative, customer first, quality first". We will continue the introduction of advanced technology and scientific research achievements from domestic and abroad, in order to provide more valuable products and services. With the advantages of technical know how, marketing and service, we’ve build a competitive, leading, respected enterprise in our society, in which all the staffs take pride of.

Our workshop:

Our Honor:

2016

●Becoming a member of OptimumNano Innovation Union

●Providing nitrogen generators for world largest Ore Carrier Vessels (400,000 DWT)

2015

●Obtained certifications of ISO9001: 2008 quality management system, Lloyd’s Register of Shipping (UK LR), Bureau Veritas( France BV),American Bureau of Shipping(ABS)and CONFORMITE EUROPEENNE (CE)

●Started exporting our industrial gas solution to international users.

2013

●Approved to be qualified Haier Group supplier, providing PSA nitrogen generator and Membrane nitrogen generator.

2012

●Obtained over 10 Invention Patents on Hydrogen Recovery System Plants, positioning ourself as leader in the industry

●Installed several bell furnace hydrogen recovery system production lines for cold rolled strip manufacturers, effectively reduce the energy cost.

●Provided nitrogen generator for LNG vessel, becoming the first LNG nitrogen generator supplier in this area.

2011

●Installed 2800Nm3/h ship nitrogen generator for a domestic shipping company, becoming the largest ship nitrogen generator manufacturer in China.

2010

●Obtain pressure pipeline special equipment manufacturing license

●Provided the largest nitrogen purifier for SINOPEC, set a record of maximum carbon type nitrogen purifier in China.

2008

●Approved to be Qualified Supplier by China Aerospace Science and Technology Group

●Obtained China Classification Society (CCS) certification

●Cooperated with CNOOC(China National Offshore Oil Corporation) first ship nitrogen generator, which was highly appraised.

2007

●Officially began to be IUR Base for Sichuan University and Material Institute of Central South University of Forestry and Technology

●Approved as“High Technology Enterprise of Jiangsu Province”

2006

●Approved as nominated supplier for CBPMC(China Banknote Printing and Minting Corporation)

September 2004

●Suzhou Since Gas System Co.,Ltd was officially founded

●Full set of nitrogen/ hydrogen gas station successfully installed at Nanjing Mint, which were highly appraised;
