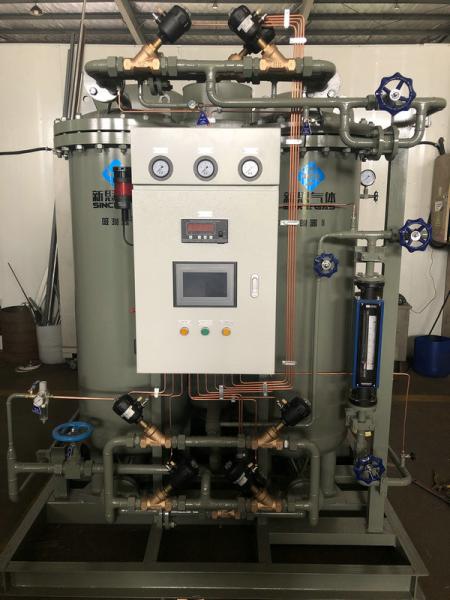

High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life

JoShining Energy & Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life from wholesalers

    Buy cheap High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life from wholesalers
    • Buy cheap High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life from wholesalers

    High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life

    Ask Lasest Price
    Brand Name : SINCE-GAS
    Model Number : PM
    Certification : CE,ABS,CCS,BV,DNV,ASME,GOST,
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000sets/year
    Delivery Time : 2 months after received down payment
    • Product Details
    • Company Profile

    High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life

    High Purity 99.9999% Membrane Nitrogen Generator Long Molecular Sieves Life​


    Membrane Nitrogen Generator applications


    1.Metal processing and laser cutting

    2.Pharmaceuticals

    3.Electronics

    4.Food and beverage processing and storage


    Membrane Nitrogen Generator Working Principle


    Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen

    from the air in the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular

    sieve, while nitrogen is collected in a short time, to achieve separation of oxygen and nitrogen.

    The adsorption capacity of carbon molecular sieve is significantly different with different

    oxygen pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make

    carbon molecular sieve regeneration, then can be used repeatedly.

    Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling.

    They switch with each other, thus continuous output of high-quality nitrogen.


    Environment condition of Membrane Nitrogen Generator


    1.installation place: ground grading, without foundation, but it is necessary to have a sewage discharge

    ditch.

    2.The reserved area: about 200m2.

    3.Ambient temperature: ≤40°C.

    4.Relative humidity: ≤80%.

    5.Power:440V/ 380V/220V,60/Hz/ 50Hz


    Membrane Nitrogen Generator Specification:


    Item

    Technical

    Remark

    N2 flow rate

    1200Nm3/h

    Standard state

    N2 purity

    ≥95.0%

    non-oxygen content

    N2 outlet pressure

    0.1~0.6Mpa

    Gage pressure, adjustable

    N2 outlet dew point

    ≤ 45 °CAtmospheric dew point

    Nitrogen system

    1 air compressor

    2 Compressed air pretreatment system (dryer and multistage filters)

    3 Air buffer tank

    4 PSA nitrogen generator

    5 Nitrogen gas buffer tank

    6 Control system(including man-machine control interface)

    7 Instrument and meter (installed in nitrogen generator)


    Required air consumption

    Item

    Technical parameter

    Remark

    Flow rate

    >1200m3/h


    Pressure

    >0.8Mpa


    PSA Nitrogen Generator

    Item

    Technical parameter

    Remark

    Model

    PM-1200


    N2 output

    1200Nm3/h

    Standard state

    N2 purity

    ≥95%

    Non-oxygen content in GB

    Pressure

    0.8Mpa


    Outlet pressure

    0.1-0.6Mpa

    Adjustable

    Dew point of N2 outlet

    ≤-45°C

    Atmospheric dew point
